Induction Bar End Heating Systems

Induction bar end heating uses a precisely shaped induction coil to heat only the end of a steel bar to forging temperature, leaving the rest of the bar cool and easy to handle. Interpower Induction designs and builds induction bar end heating systems for upsetting, swaging, heading, piercing and thread rolling, with coils and controls matched to your part sizes and production rate.





Bar End Heating Equipment Built Around Your Parts

Interpower Induction’s bar end heating equipment can be developed and manufactured for a variety of part sizes and shapes. Multiple bar ends can be heated at once using different types of induction coils, so one system can match the throughput of your forging line.





Induction Bar End Heating Machines for Forging

Interpower builds induction heating machines for bar end heating that fit the specific requirements of your forging project, from the coil design to the power supply and controls.

Bar End Heater Features

  • Advanced PLC control of power and temperature
  • Quick-release connections for power and water
  • Heavy-duty construction for tough forging conditions

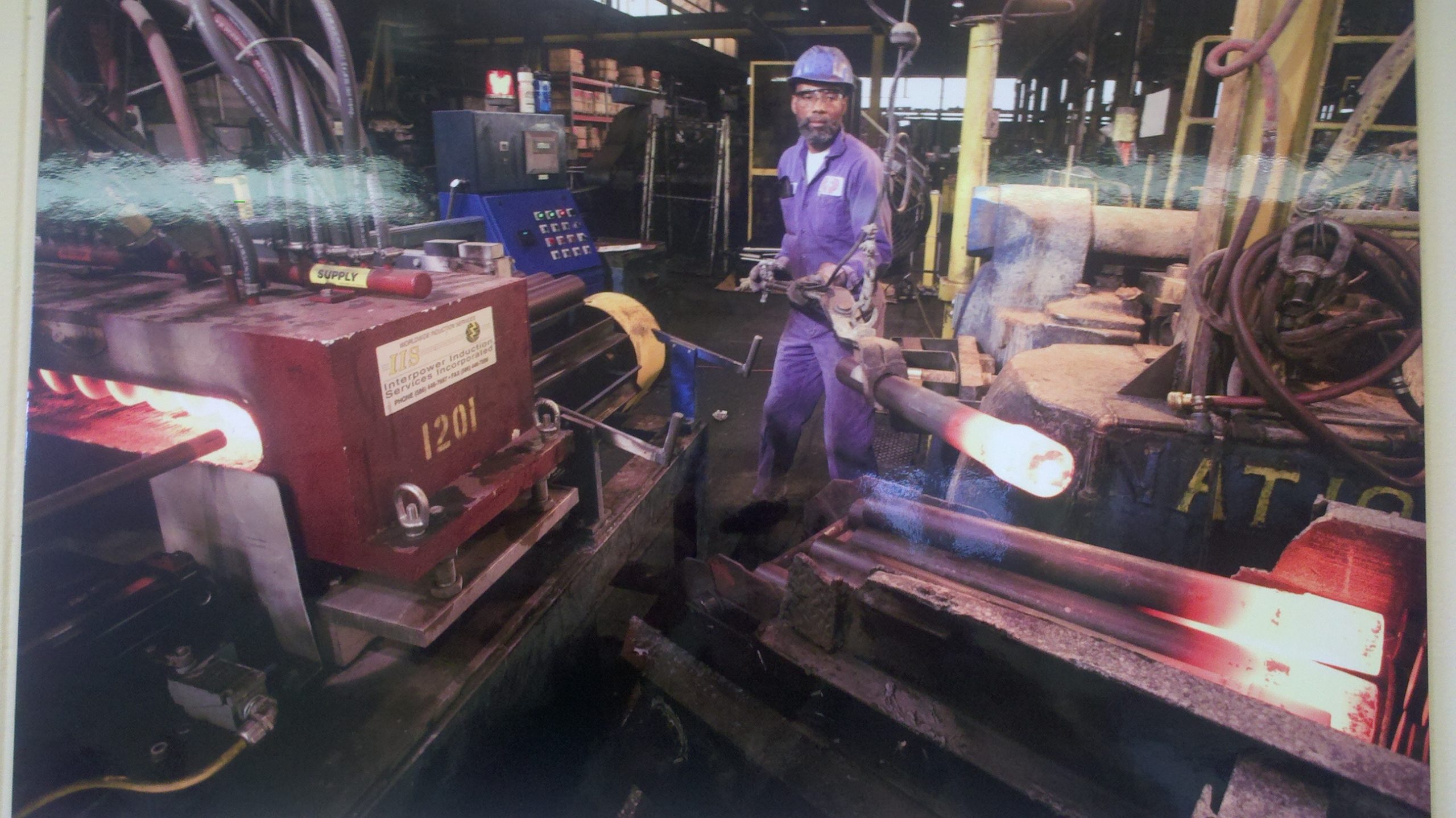

  • Solenoid, multi-station, skid and choval coil options for horizontal and vertical upsetting, swaging, thread rolling, piercing and heading

Forging Applications for Bar End Heating

Bar end heating prepares the end of a bar for any operation that reshapes only part of the length:

  • Upsetting: Heating the bar end so it can be pressed to a larger diameter, in horizontal or vertical upsetters.
  • Heading: Forming bolt, fastener and anchor heads.
  • Swaging: Reducing or tapering the bar end.
  • Thread rolling: Bringing the end to the right temperature for warm rolling threads.
  • Piercing: Heating the end before a hole or cavity is formed.

Induction Coil Options for Bar End Heating

Coil design decides how evenly and quickly the bar end heats. Interpower engineers choose the coil based on bar diameter, heated length and production rate.

  • Solenoid coils: Wrap around the bar end for even heating.

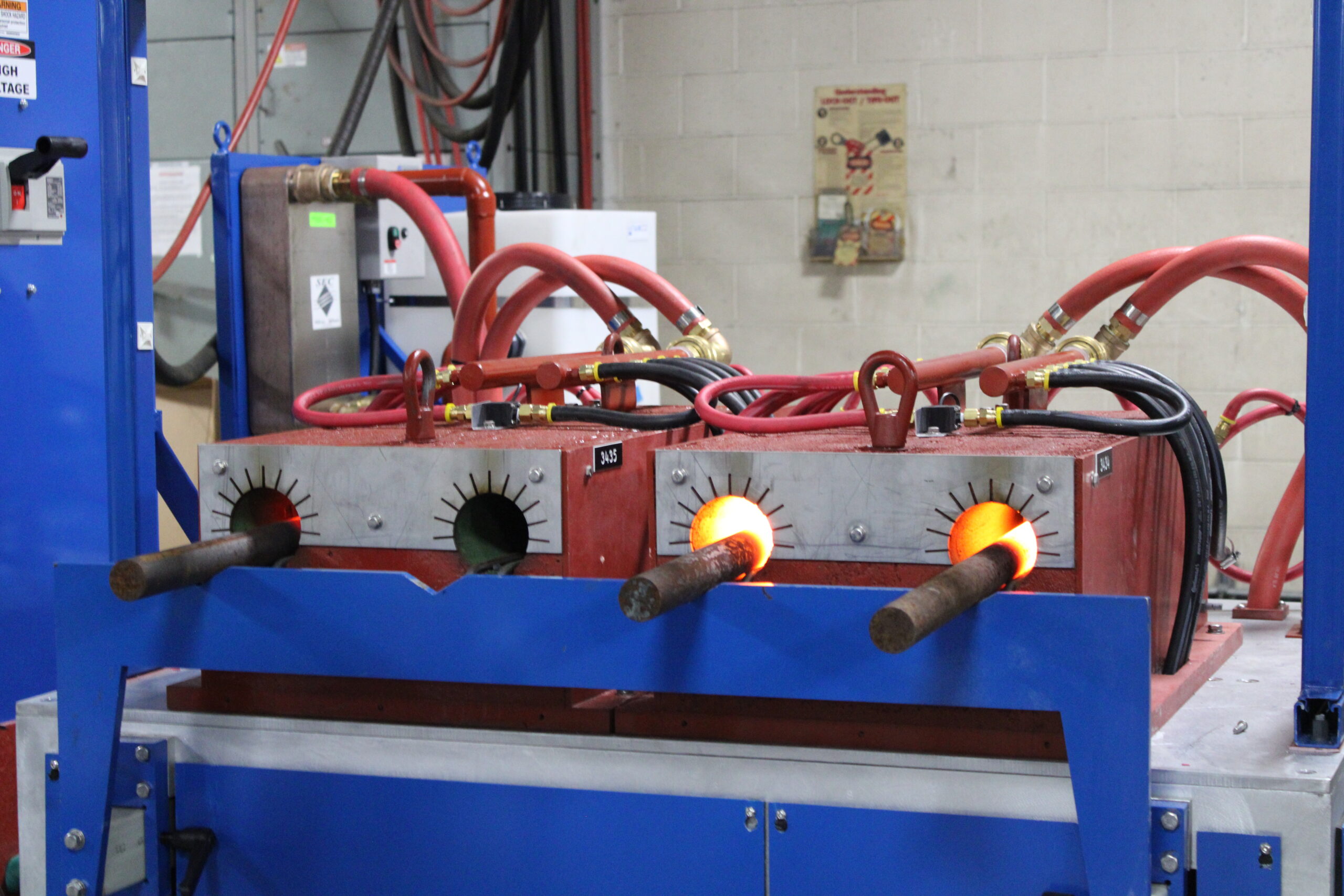

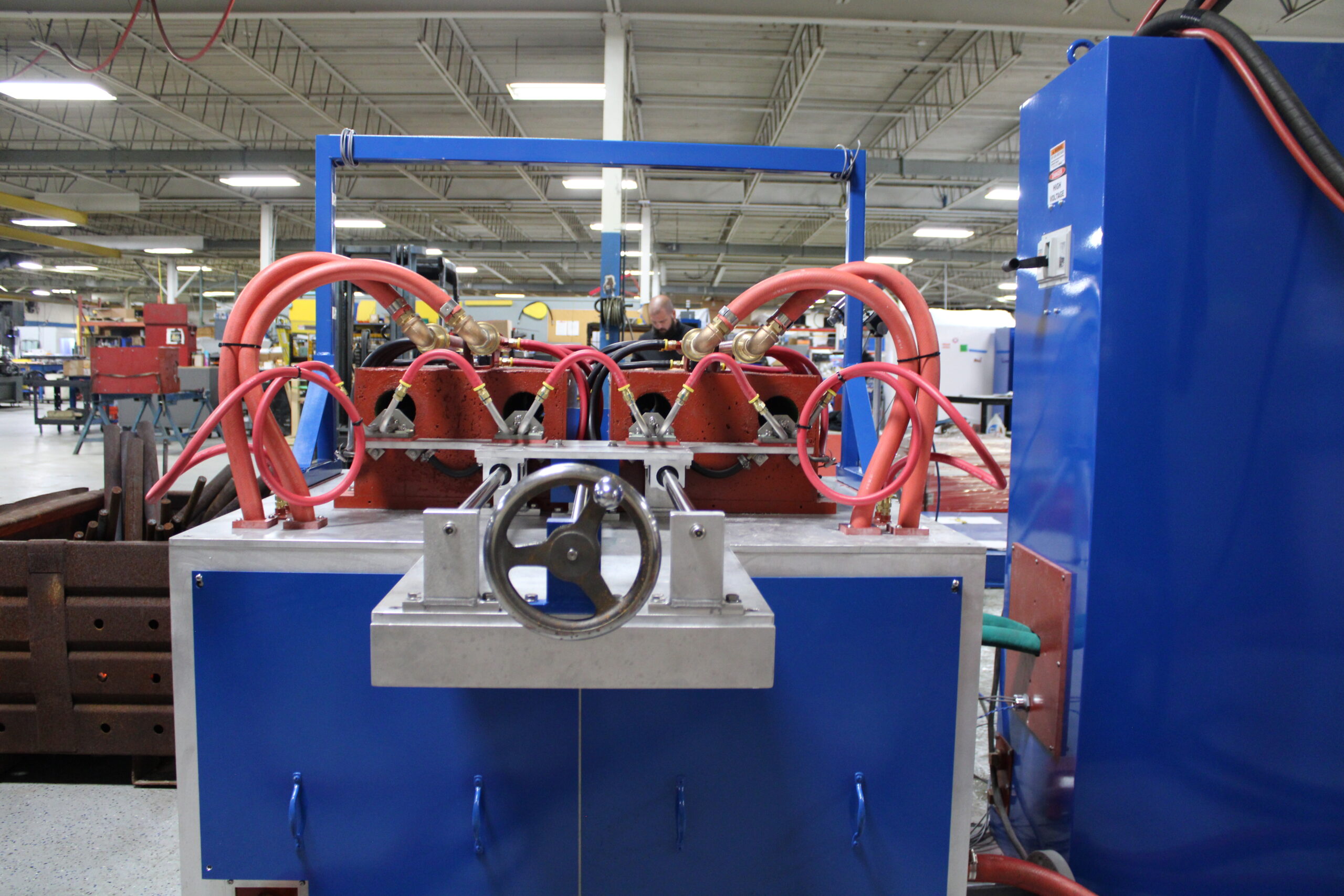

  • Multi-station coils: Heat several bar ends at once for higher throughput.
  • Skid coils: Bars ride along skid rails through the coil, which suits continuous feeding.

Why Use Induction Instead of a Furnace for Bar Ends

Induction heats only the length you forge, so no energy goes into heating the full bar or holding a furnace at temperature. Heating starts and stops on demand, PLC control repeats the same temperature cycle part after part, and the short heat time reduces scale on the forged surface.

Manual and Automatic Bar End Heating Systems

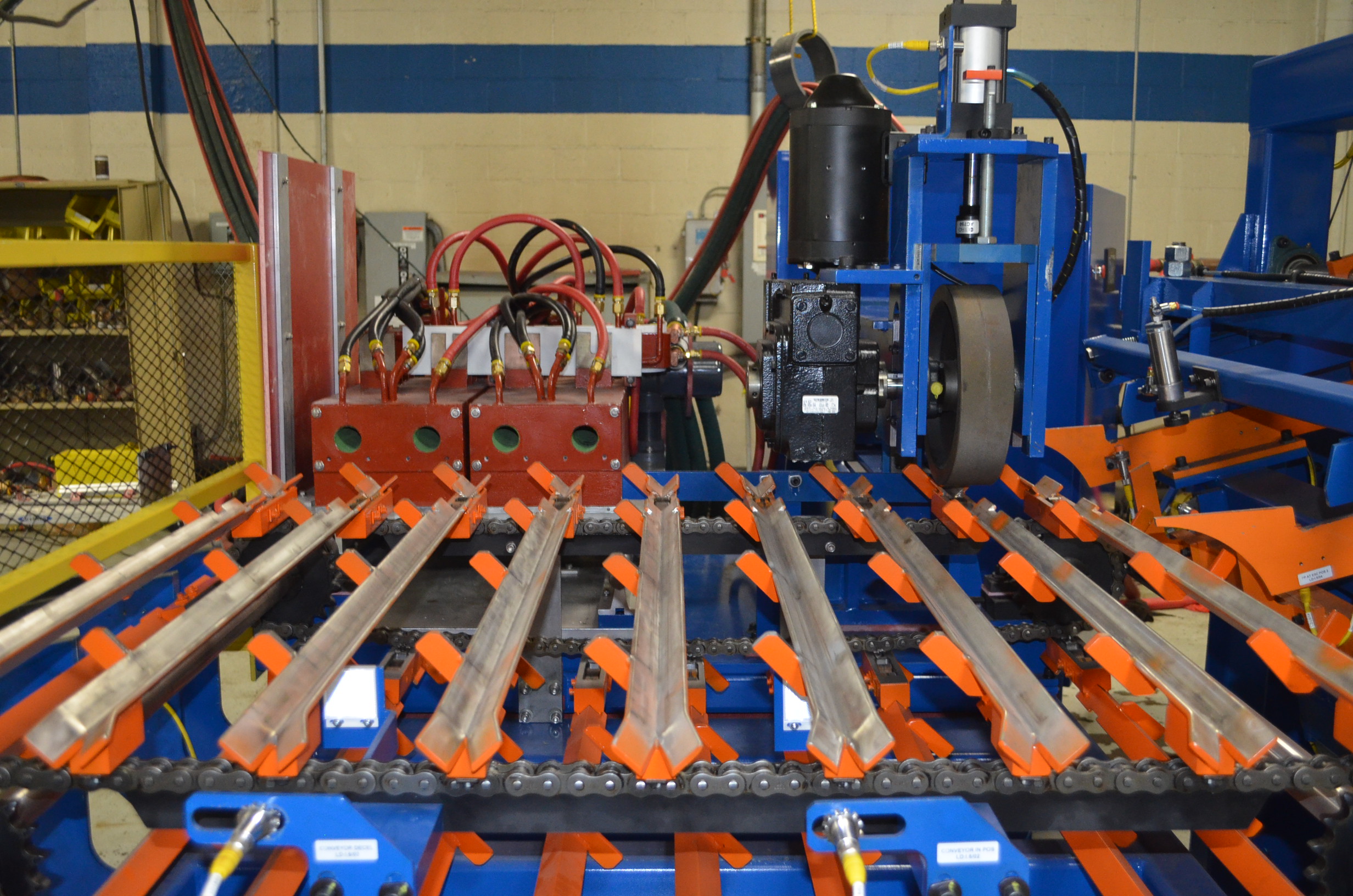

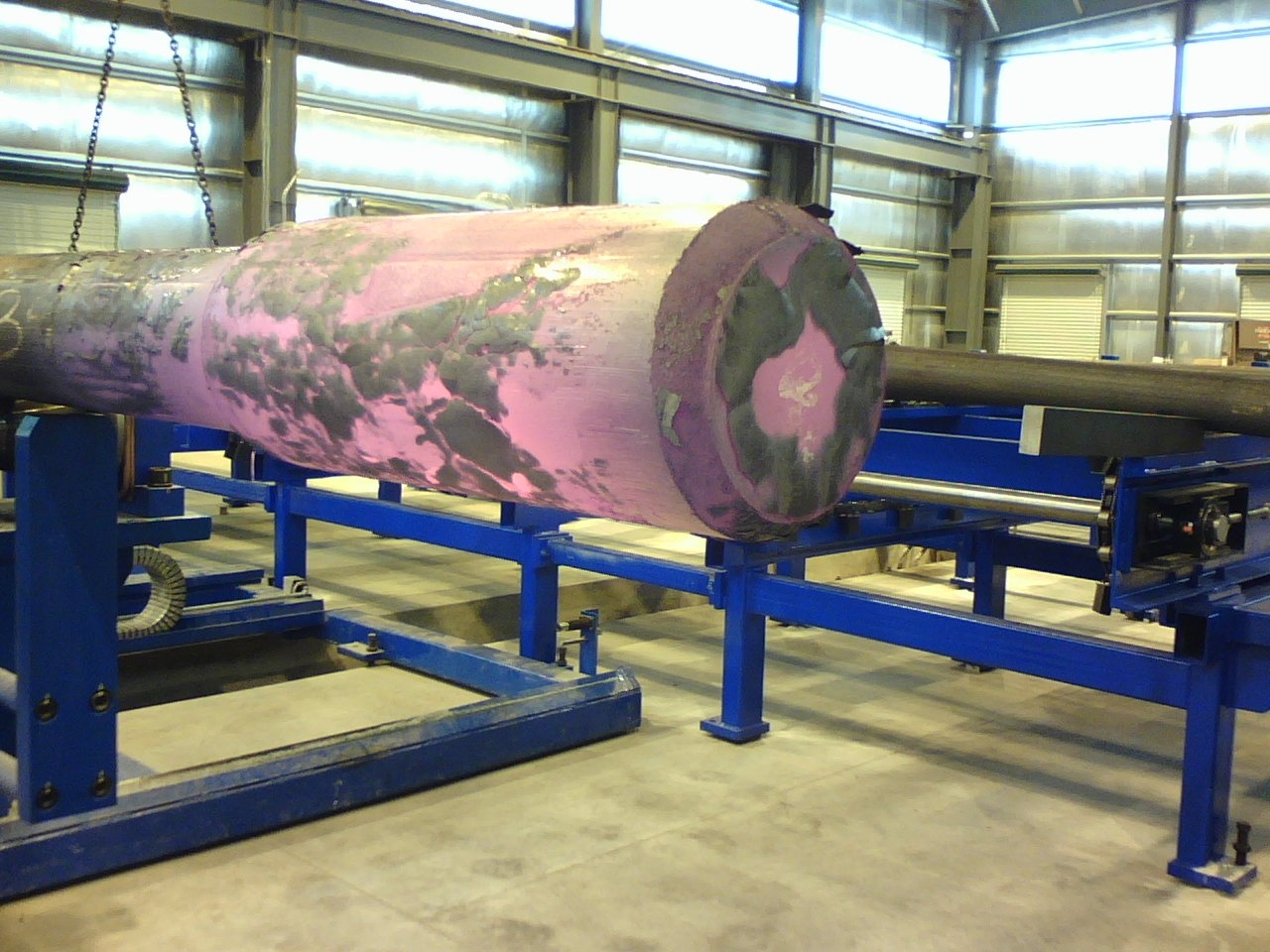

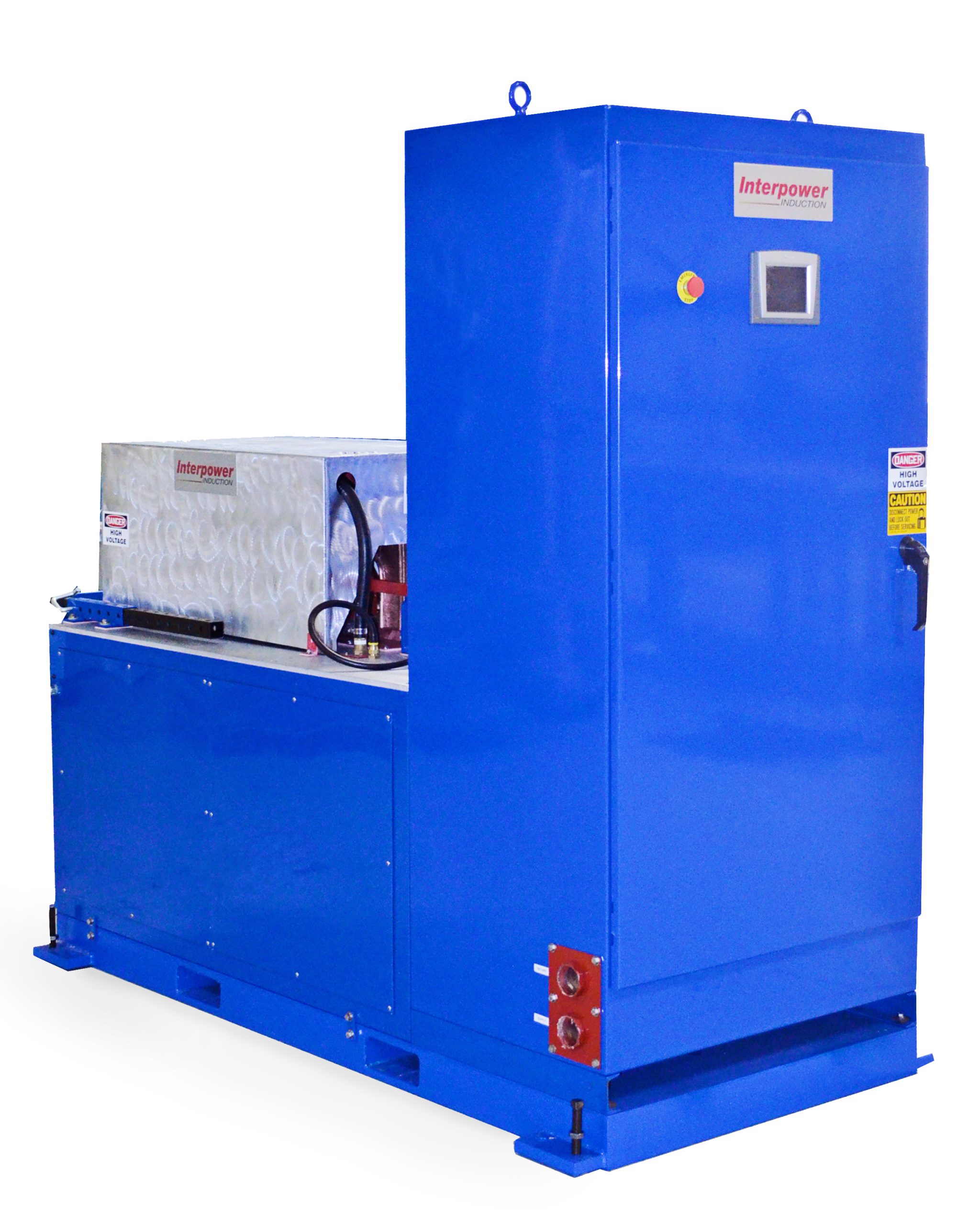

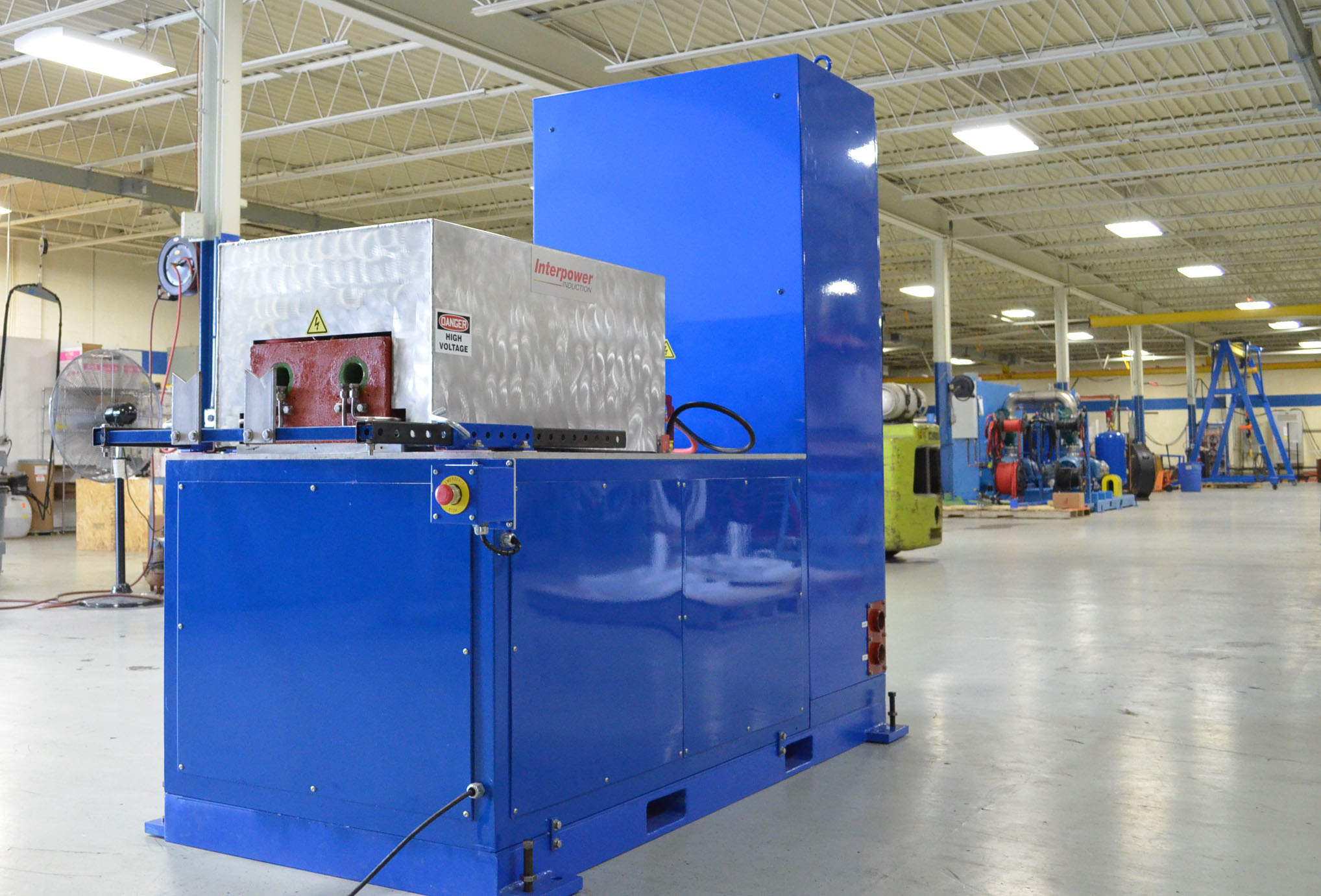

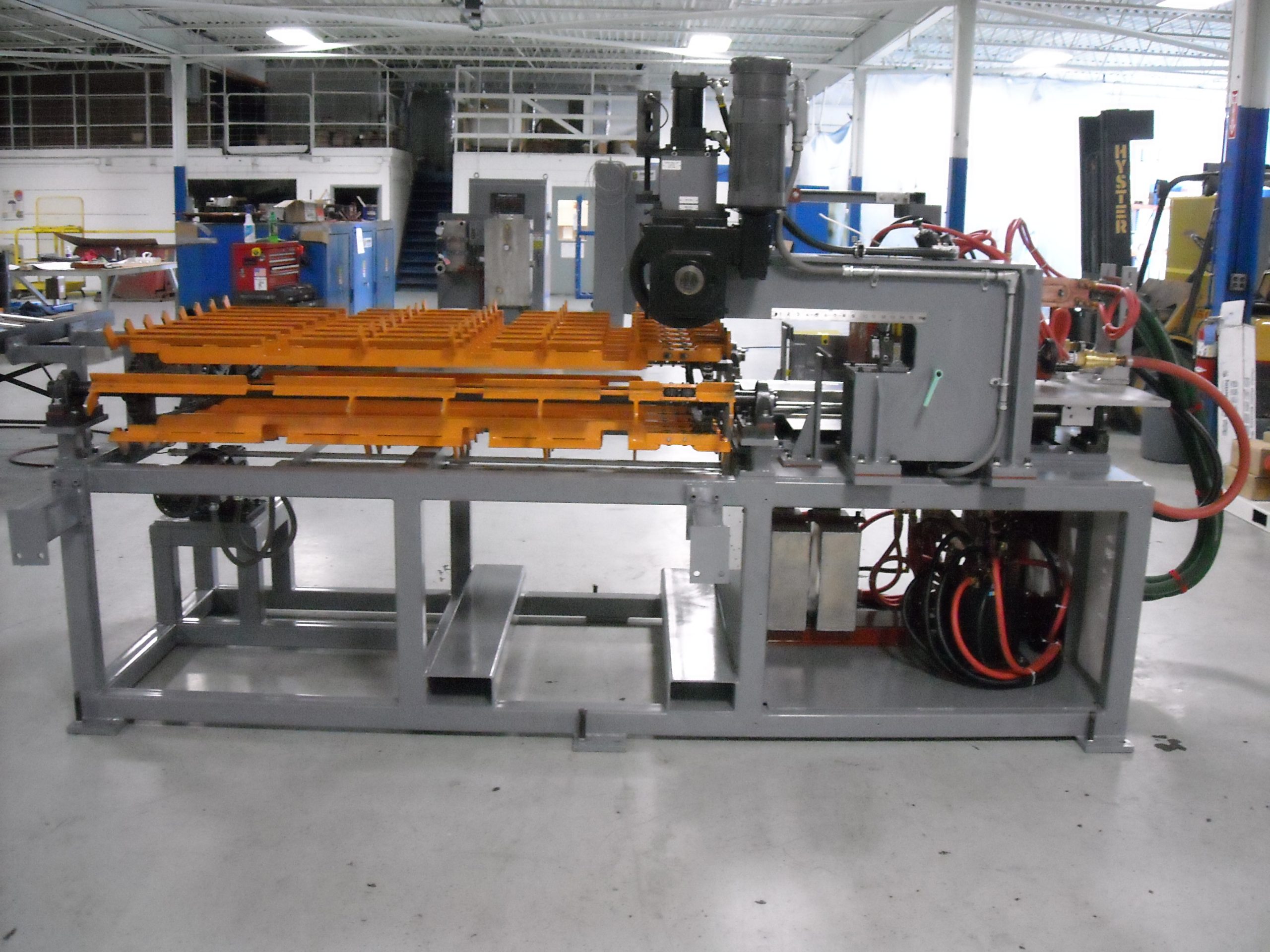

Interpower builds bar end heating systems in 2-position and 4-position configurations, in both standard and automatic versions. More positions heat more bar ends per cycle, so the system can keep pace with your upsetter or header. Share your production rate and our engineers will recommend the configuration that fits your line.

What to Send for a Bar End Heating Quote

To size a system, our engineers need:

  • Material grade
  • Bar diameter or shape
  • Heated length
  • Target temperature
  • Parts per hour
  • Forging operation
  • Available plant power and cooling water

Email info@interpowerinduction.com or call (810) 798-9201 to start your quote.

Bar End Heating FAQs

What is induction bar end heating?

Induction bar end heating uses an electromagnetic field from a copper coil to heat only the end of a metal bar to forging temperature. The rest of the bar stays cool, so the heated end can be upset, headed, swaged or thread rolled.

What forging operations use bar end heating?

Bar end heating is used for horizontal and vertical upsetting, heading, swaging, thread rolling and piercing. In each case only part of the bar's length needs to be reshaped.

Which induction coil is right for my bar end heating application?

It depends on bar size, heated length and production rate. Interpower builds solenoid, multi-station, skid and choval coils, and our engineers recommend a coil design after reviewing your part and throughput requirements.

Why use induction instead of a furnace to heat bar ends?

Induction heats only the section being forged, starts and stops on demand, and repeats the same temperature cycle with PLC control. The short heating time also reduces scale compared with longer furnace heating.

Can one machine heat multiple bar ends at the same time?

Yes. Multi-station coil designs heat several bar ends at once, so the heating system can keep pace with your forging press.

What information do you need to quote a bar end heating system?

Send the material grade, bar diameter or shape, heated length, target temperature, parts per hour and forging operation. Contact info@interpowerinduction.com or call (810) 798-9201.
