Induction Shrink Fitting
Induction Shrink Fitting Equipment
By heating or cooling one component before assembly and allowing it to return to the ambient temperature after assembly, the phenomenon of thermal expansion makes a joint.
Interpower Induction builds systems to pre-heat metal components between 150ºC and 300ºC, causing them to expand and allowing for the insertion or removal of another component.

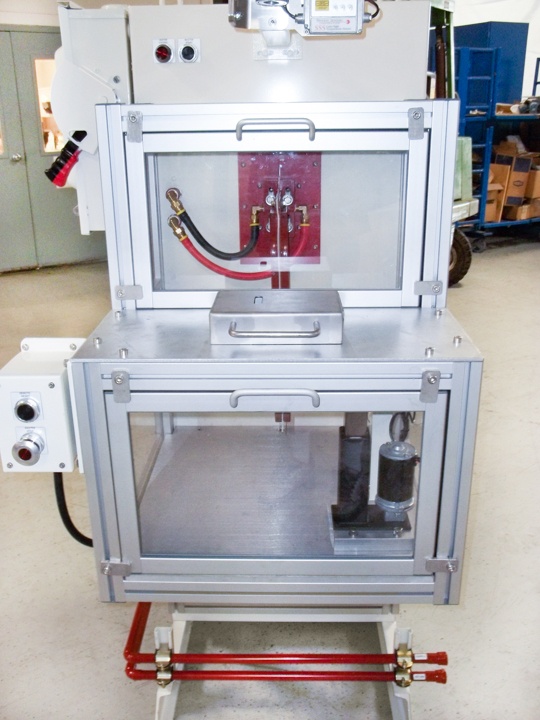

Systems can be manually loaded or can be completely automated with part placement, insertion with cool down included. Our standard lift fixture can single shot heat in seconds to any desired temperature using a timer and can be verified by an optical pyrometer.
Interpower engineers design shrink fit systems that are simple and robust.
Applications of Induction Shrink Fitting Equipment
Manufacturers across heavy industry face a common challenge: assembling tight-tolerance components without damaging precision surfaces or introducing thermal stress. Shrink fitting induction solves this by heating only the outer component to a precise temperature, allowing it to expand, receive the inner part, and lock into place as it cools. Interpower Induction shrink fitting systems deliver this process with repeatability and speed that flame heating and oven methods cannot match.
Induction shrink fitting equipment supports assembly and disassembly operations across a wide range of industries where thermal precision and repeatability are critical. From automotive drivetrains to power generation turbines, our systems handle components ranging from small bearings to multi-ton industrial assemblies. Common applications include:
- Automotive: Gears, bearings, and pulleys on shafts for transmissions, drivetrains, and electric motor assemblies
- Aerospace: Turbine components, landing gear bushings, and rotor assemblies requiring non-negotiable thermal precision
- Rail and heavy equipment: Wheel mounting on axles, drive component coupling, and large bearing assembly for mining and construction machinery
- Power generation: Generator rotors, pump impellers, and turbine shafts
- Industrial tooling: Cutter head assembly and die mounting
- Maintenance and disassembly: Controlled removal of seized bearings, gears, and couplings without damaging either part
Induction Shrink Fitting Equipment Features & Capabilities
Interpower shrink fitting systems are engineered to meet the specific demands of production assembly. Each system is built to match the geometry, mass, and throughput requirements of the parts being joined, which means no two installations look exactly alike.

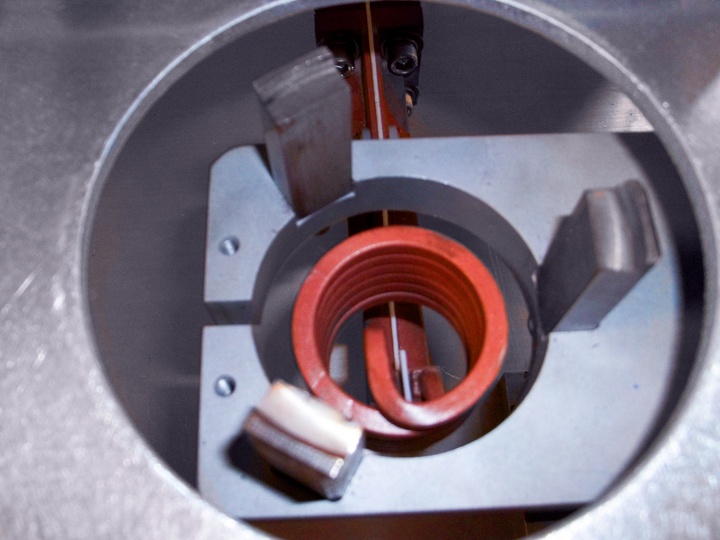

Core capabilities of our induction heating equipment for shrink fitting include precise temperature control through integrated pyrometers and thermocouples, ensuring components reach the exact expansion point without overheating. Power output ranges from compact units for small bearings to multi-hundred-kilowatt systems for large industrial assemblies. Custom-designed inductor coils concentrate the electromagnetic field on the target area, reducing cycle times and energy consumption compared to furnace heating.
Our systems integrate directly into automated production lines with PLC controls, recipe management for multiple part numbers, and data logging for quality traceability. Quick-change tooling accommodates varied part sizes, and closed-loop cooling maintains consistent performance during continuous operation. For facilities requiring flexibility, portable and bench-top configurations handle lower-volume or maintenance applications.
Every system is backed by application engineering support, from initial process development through installation, operator training, and ongoing service. This hands-on approach is what separates purpose-built induction heating systems from generic heating solutions.
Frequently Asked Questions
How does induction shrink fitting compare to oven heating?
Induction heats only the component being expanded, reducing cycle times from hours to minutes and eliminating the energy waste of heating entire ovens. Temperature control is also far more precise, which protects heat-sensitive materials and adjacent assemblies.
What size components can Interpower shrink fitting systems handle?
Our equipment scales from small bearings weighing a few pounds to large industrial components exceeding several tons. System design is based on the part geometry, target temperature, and required cycle time.
Can existing production lines be retrofitted with induction shrink fitting equipment?
Yes. We regularly design systems that integrate with existing conveyors, robotic handlers, and assembly cells. PLC communication protocols are matched to your plant’s control architecture.
What maintenance do induction shrink fitting systems require?
Routine maintenance includes inspecting cooling circuits, checking electrical connections, and verifying temperature sensor calibration. With proper care, our power supplies operate reliably for decades.
How do I determine which system is right for my application?
Contact our engineering team with your component specifications, production volume, and facility requirements. We evaluate each application individually and recommend equipment based on your specific process goals.
Ready to discuss your shrink fitting application? Reach out to Interpower Induction to speak with an engineer about custom induction shrink fitting equipment built for your production environment.
