Induction Coil Repair
General Information
Interpower Induction not only designs and manufactures new coils, but also offers individual repair, recondition, and replacement on a wide range of coils. Repair and replacement includes minor repair and patching materials, PTA hardened skid rails, high temperature panels, non-conductive hoses, water cooled cables, cast end boards, ceramic liners, and fittings.
When an induction coil starts showing signs of wear, the impact is immediate. Production slows, energy use climbs, and heating results lose consistency, all issues that can throw off your entire operation. Because the coil is at the heart of the process, induction coil repair is a way to keep your equipment running at the level you depend on.
Coil Repair
- Forging Coils
- Brazing Coils
- Melting Coils
- Heat Treat Coils
- Pipe Heating Coils
- Integral Quench Coils
- Single and Multi-turn Coils
- Helical Wound Solenoid Coils
- Bar and Bar End Heating Coils
- Split Return, Seam Annealing Coils
- Scan Hardening and Gear Hardening Coils
Questions?
Frequent Problems With Induction Coils
Even the most durable designs wear down over time. Spotting issues early keeps your system running efficiently and helps prevent costly breakdowns. Some of the most common problems include:
- Cracks and leaks – Overheating or improper cooling can lead to fractures in the coil, often causing water leaks that compromise performance.
- Electrical arcing – Damaged insulation or worn connections may result in arcing, which can severely damage the coil and surrounding components.
- Erosion and thinning – Continuous exposure to heat and stress can erode copper tubing, reducing coil efficiency and increasing the risk of failure.
- Insulation breakdown – Over time, insulating materials degrade, leaving the coil vulnerable to shorts and electrical hazards.
- Reduced heating performance – As damage accumulates, coils may struggle to deliver consistent heat, leading to slower production cycles and higher energy consumption.
The Induction Coil Repair Process Explained
Repairing an induction coil is a structured process designed to bring the component back to its original performance standards. While the exact steps vary depending on the damage, most professional induction coil repair follows a proven sequence:
1. Inspection and Diagnosis
Every repair starts with a detailed evaluation. Technicians look for visible cracks and insulation damage, and then use testing equipment to detect hidden issues that may affect performance.
2. Cleaning and Preparation
We clean the coil thoroughly to remove oxidation and old insulation. This step ensures new repairs bond properly and the coil can be accurately assessed.
3. Repair and Rebuild
Depending on the condition, the coil may need brazing or welding to fix cracks, reinforcement of tubing, or complete replacement of damaged sections.

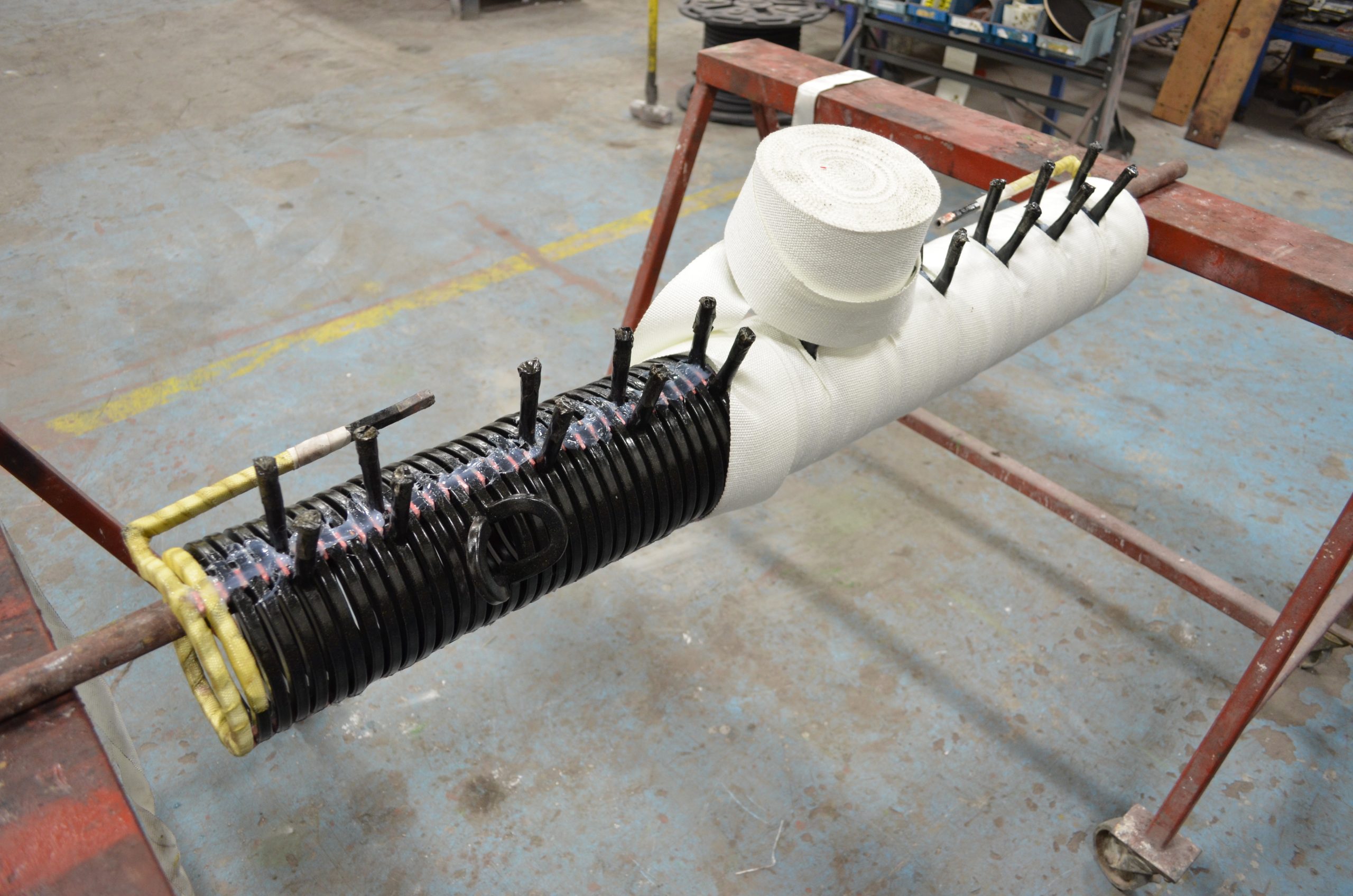

4. Insulation and Coating
Once structural repairs are complete, we re-insulate the coil using high-quality materials to protect against electrical breakdown and extend lifespan.
5. Testing and Quality Assurance
After reassembly, the coil undergoes performance testing under operating conditions. This ensures the repair fixes the problem and restores efficiency and reliability.
When to Choose Reconditioning vs. Refurbishment
Not all coil issues require the same level of work. Understanding the difference between induction coil reconditioning and induction coil refurbishment helps determine the best path forward.
Induction Coil Reconditioning
Reconditioning is ideal when the coil still has a solid foundation but needs attention to restore peak performance. This usually involves:
- Minor repairs, such as fixing small leaks or cracks.
- Replacing worn insulation.
- Cleaning and reinforcing existing copper tubing.
- Performance testing to confirm efficiency.
Think of reconditioning as preventive care. It extends the service life of a coil before damage becomes too extensive.
Induction Coil Refurbishment
Refurbishment is a more in-depth process, recommended when a coil shows significant wear or structural damage. This can include:
- Major rebuilding of coil sections.
- Extensive brazing, welding, or tubing replacement.
- Applying new insulation and coatings throughout.
- Rebalancing and testing the coil to the original specifications.
Refurbishment often costs less than buying a new coil yet delivers the same performance and reliability.
Which Option is Right for You?
Choose reconditioning if your coil has minor wear and you want to prevent failures. Choose refurbishment if your coil is heavily damaged but still has a recoverable base. Working with a provider skilled in both ensures your coils are returned to service quickly, whether through a simple reconditioning or a full refurbishment.
Why Choose Interpower Induction
When it comes to induction coil repair, the choice of service provider matters as much as the repair itself. Interpower Induction has built a reputation for reliability and quality, making us the partner of choice for companies across industries.
Proven Expertise in Coil Repair
With decades of hands-on experience, Interpower Induction understands the full lifecycle of induction coils. Our technicians handle minor reconditioning and complete refurbishment, restoring coils to peak performance regardless of the original manufacturer.
Faster Turnaround, Lower Costs
Unplanned downtime is expensive. Interpower Induction provides quick repair and refurbishment services, helping customers get back online faster while saving significantly compared to full replacement.
More Than Repairs: Access to New Coils
Interpower also manufactures and supplies new coils. That means customers can get immediate fixes and long-term solutions in one place. Explore our induction coils for sale to see available options.
Combining repair expertise and a customer-first approach, Interpower Induction delivers a complete solution for any coil problem.
Frequently Asked Questions
How long does induction coil repair usually take?
Repair timelines depend on the extent of the damage, but most standard coil repairs take a matter of days. Complex refurbishments may take longer, though they’re still faster than ordering and waiting for a new coil.
Can repaired coils perform as well as new coils?
Yes. When done properly, coil repair restores the component to original performance standards, often extending its useful life by years.
Is it possible to repair coils from other manufacturers?
Yes. Interpower Induction repairs coils made by other manufacturers, giving you flexibility no matter where your equipment originated.
